NOTE: This installation guide is for the Element-D devices only

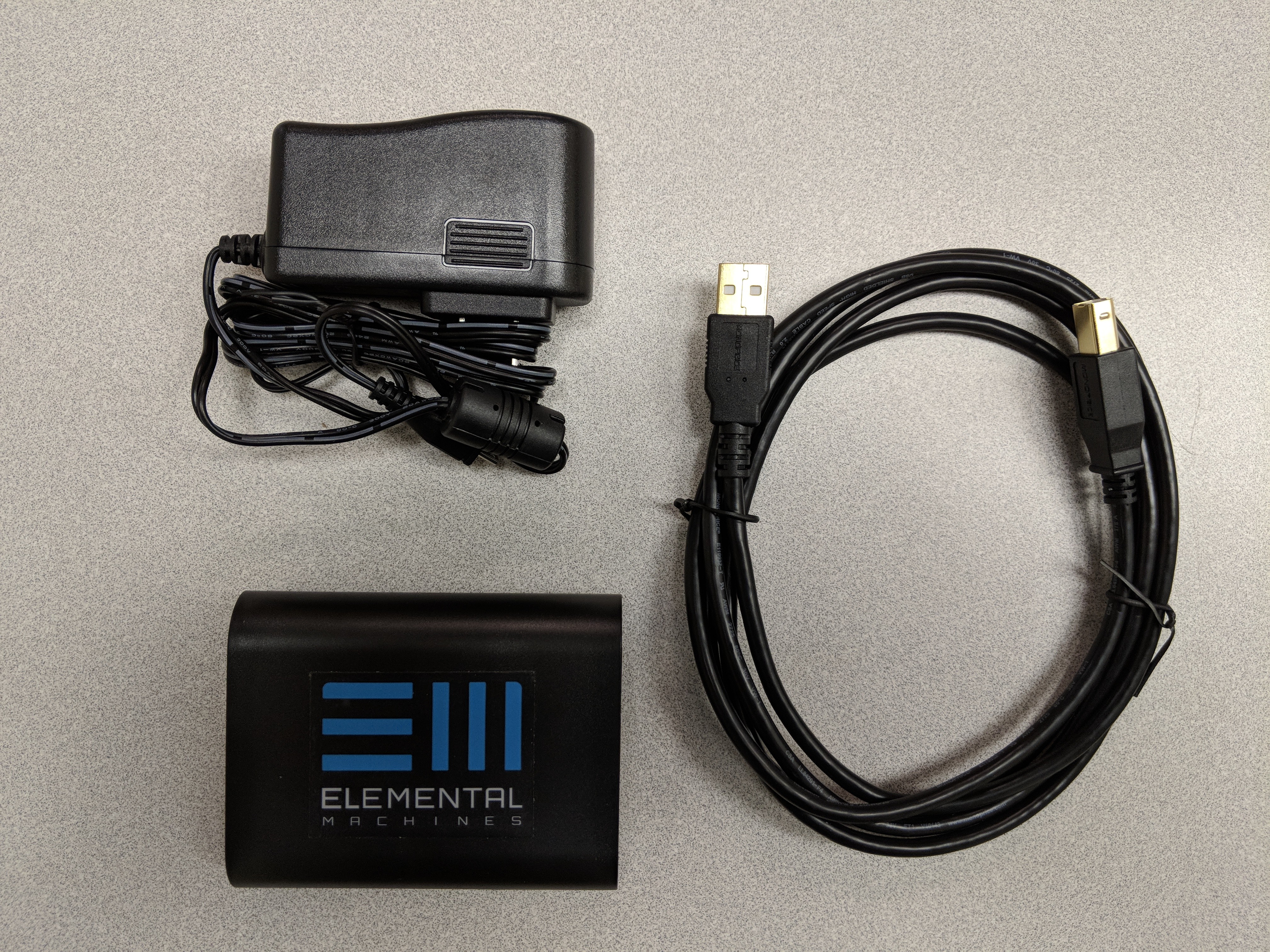

The Element D Kit Contains three items:

  1. The Element-D
  2. Power Cord
  3. USB Cable

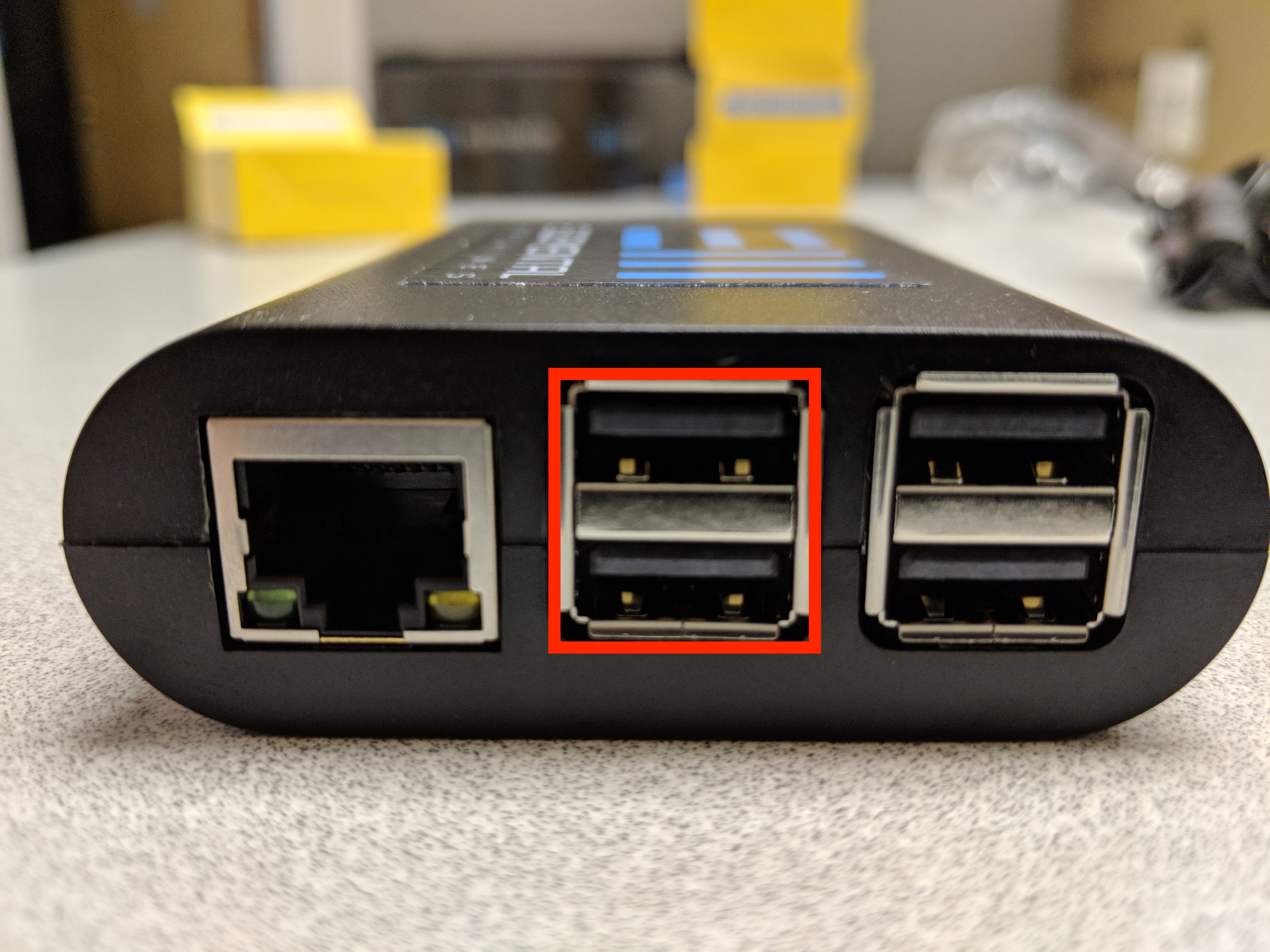

Insert the USB Cable here:

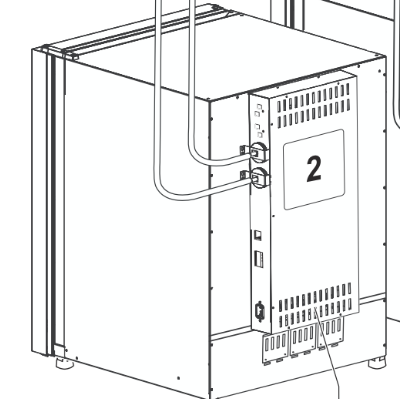

On the Back of the Heracell device locate the data ports shown in the following figure labeled 2:

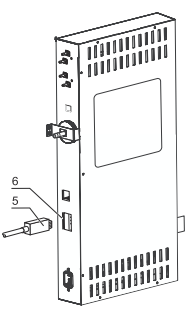

Insert the other end of the USB cable into the USB port shown in the following figure labeled 6:

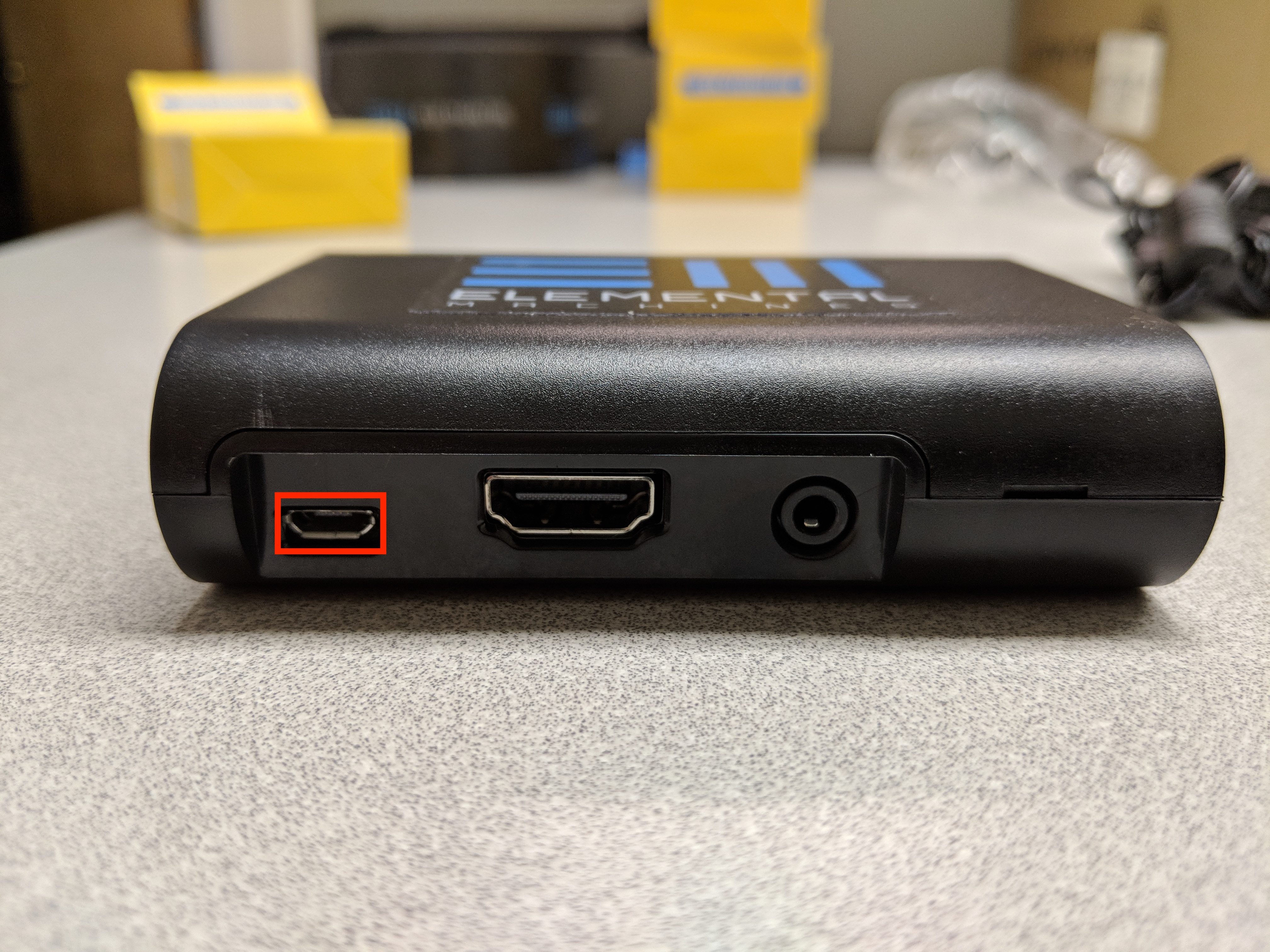

Connect power cord to wall and insert here:

Continue with the setup of the device on the Elemental Insights Dashboard
