Applicable White Multitron Incubator Shaker Models
- Infors White Multitron
Package Contents
- Element-B
- Connection Cable
Safety Information
Review and abide by the safety information found in the Element-B and White Multitron Incubator Shaker user manuals. Tidy connection cable to prevent tripping hazards.
Installation Instructions
Receiving the Shipment
1. If this is your first time setting up the Elemental Machines system, you will receive an email for your dashboard account verification. Save this email for when the devices arrive.
2. When devices are shipped, they will be added to your Elemental Insights Dashboard™ with default names. When you first log in you will see all your devices with a 'disconnected' status.
3. When devices arrive, carefully remove the contents from the packaging. If any of the contents look damaged, please send a picture to help@elementalmachines.com.
4. If you have ordered multiple Element-B’s, ensure the Element-B being used is configured as Normally Closed (NC). This can be verified by checking the device label, the dashboard under ‘Machine Model’, or the packing list sent with your shipment.
a. Element-B’s can either be configured as Normally Closed (NC) or Normally Open (NO) by our team here at Elemental Machines. Different assets require different configurations. If you have ordered Element-B’s for multiple assets, you may have a mix and need to be aware of attaching the correctly configured device to the correct asset.
5. Ensure there is an Elemental Machines Gateway set up in the vicinity of the Element-B.
a. Note: ‘Vicinity’ is within wireless connection range. This is usually up to 30 meters but can depend on the lab’s layout.
Attaching Connection Cable to White Multitron Incubator Shaker
6. Locate the Stereo Jack labeled EXTERNAL ALARM on the right side of the incubator. Make sure that the port is centered in the incubator cutout. If the port is off center, then it will not be possible to push the Stereo cable all the way into the port. The worst case scenario is that the port may be partially obstructed by the incubator cover.
a. Note: Please contact Infors on how to open the cutout if the port is off center or obstructed, as shown in Figure 1 on the right. If this is the case, the stereo jack cable cannot be fully inserted in the port and can report incorrect incubator status.

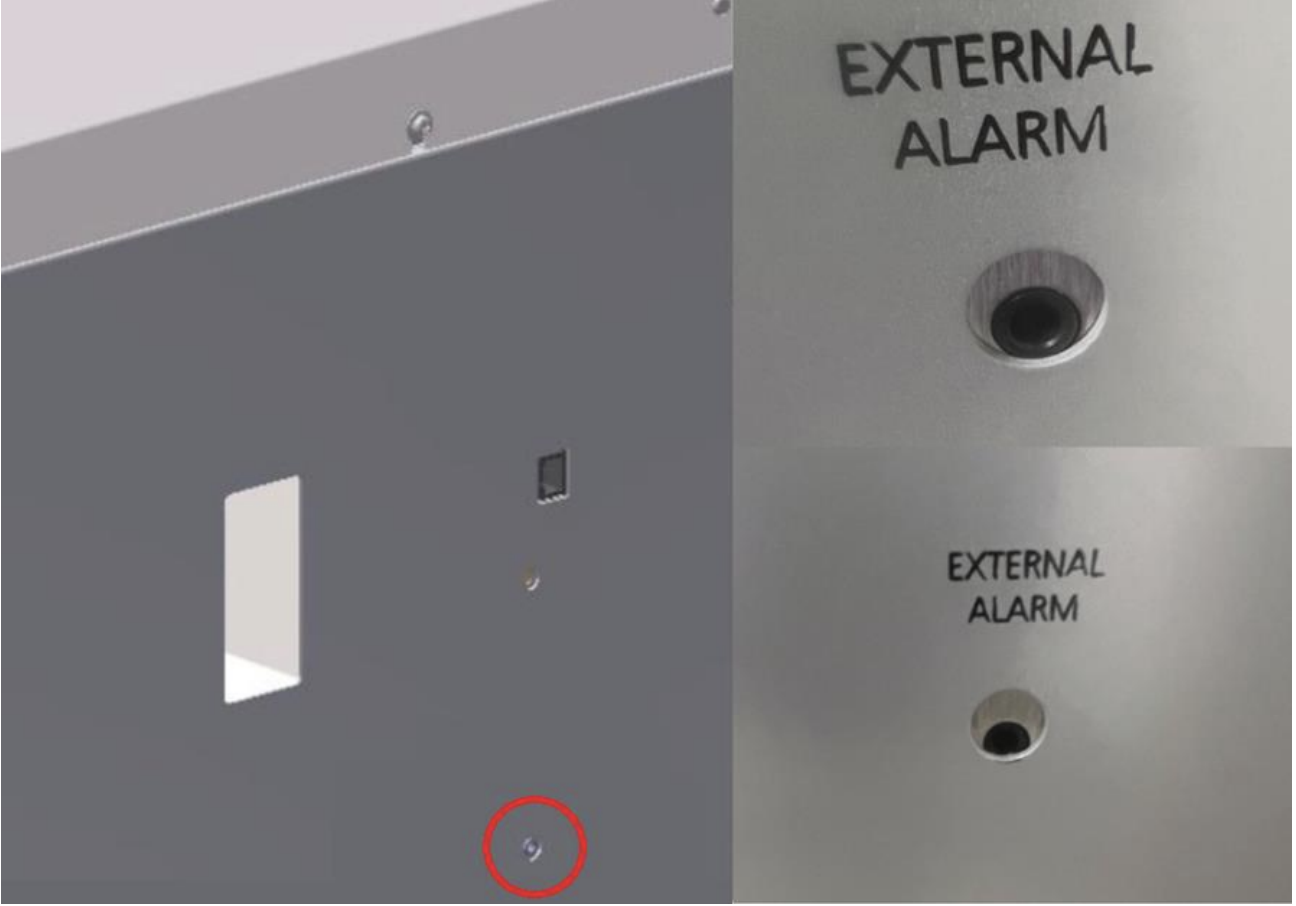

Figure 1 Left: Location of the External Alarm on the incubator. Top Right: External Alarm port is off center and bordering circumference of cutout. Bottom Right: External Alarm port partially obstructed by incubator cover
7. Insert the stereo plug end of the connection cable into the stereo jack on the Multitron.
Attaching Connection Cable to Element
8. Per your discretion, write the name and/or location of the equipment being monitored on the Element-B. This can be particularly helpful if multiple devices are being installed. Use of a Sharpie is recommended.
9. Plug the thermocouple end (Figure 2) of the connection cable into the Element-B.
a. Note Ensure the (-) and (+) prongs of the thermocouple end are properly matched.
Figure 2 Thermocouple end of Element-B connection cable
10. Pull the battery tab on the Element-B.
Positioning the Element-B
11. Determine where the Element-B should be placed so that it is not blocked, which allows a better wireless connection, and so that the connection cable is tidy.
12. Securely position the Element-B in the chosen location. The Element-B has magnets which make it easily mountable to magnetic surfaces.
a. Note: If applicable, an adhesive metal mounting plate available from EM may be used.
Programming Alerts
13. Program alerts on the White Multitron Incubator Shaker. Refer to the White Multitron Incubator Shaker user manual for which alarm conditions the White Multitron Incubator Shaker can detect and how to set up alerts.
14. Set up alert rules on the Elemental Insights Dashboard™ for the Element-B. Guidance on how to do so is available in the Support section of the dashboard.
NOTE: Alerts must be programmed on both the asset and the Elemental Insights Dashboard™ to receive remote alerts through the Elemental Machines platform.
