Introduction

This page provides work instructions for on-site integration between the Innova 44i and Element-D.

Materials

Your package contains the following items:

  • Element-D w/Power Supply
  • Ethernet cable

Setup Instructions

  1. Plug in the Element-D and complete the Wifi Connect instructions (see attachment).

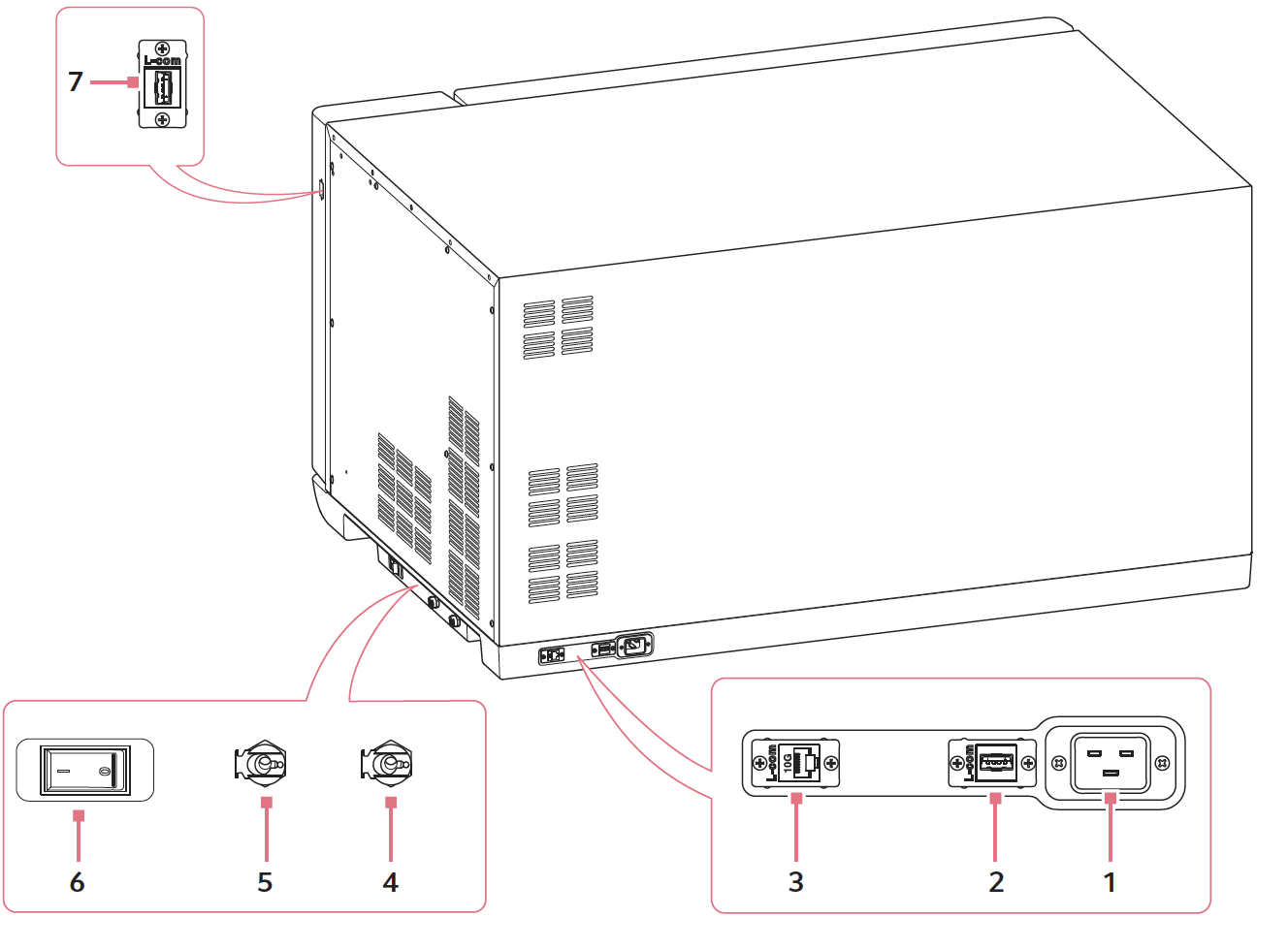

  2. Connect the Element-D to the Eppendorf Innova S44i via the ethernet cable to one of the ethernet ports. The location of the ethernet ports are 2 and 7 in the figure below.
  3. Navigate through the incubator menu display as follows:
    Menu>Settings>System Settings>Network
    For reference, see pages 40-45 of the user manual (attached below).
  4. Toggle the Enable Remote Access and Enable DHCP items to be ON.

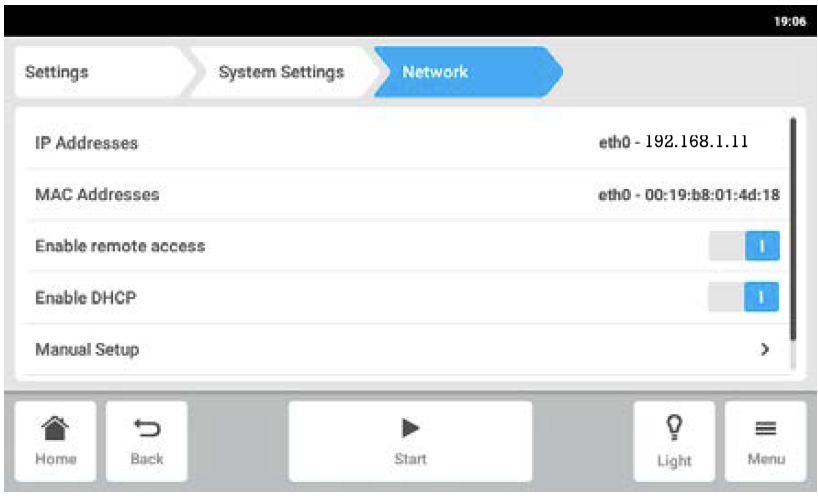

  5. After a few minutes, the IP address for eth0 should update to 192.168.1.11 as shown below:
  6. If the IP address for eth0 does not update in 10 minutes, power cycle the Element-D.
  7. Check your Elemental Machines dashboard account to confirm that incubator values are displayed.

NOTE: After setup, if the incubator is power cycled, go through steps 3 and 4. Confirm that incubator values continue to  be displayed on the Elemental Machines dashboard.
